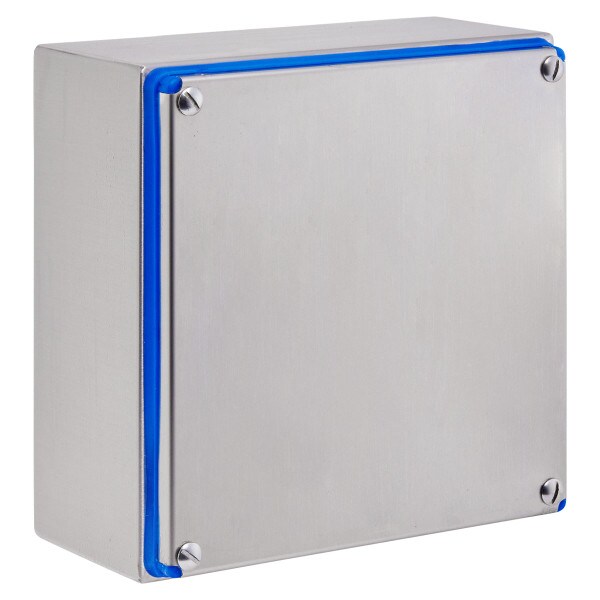

Hygienic Terminal Box 160H x 160W x 100D 304SS IP69K
Details
Hygienic Terminal Box 160H x 160W x 100D 304SS IP69K
IP69K terminal boxes are designed to prevent contamination and are suitable for the food & beverage, pharmaceutical and other industries that require high hygienic standards.
Features & Specifications
Protection: IP66 IK08, IP69K, Nema Type 1, 12, 4, 4x.
Standard: EN/AS60529, ISO20653, UL508A, RoHS
Material:
– Enclosure Body: 1.0mm to 1.2mm Grade 304 Stainless Steel
– Enclosure Door: 1.0mm to 1.2mm Grade 304 Stainless Steel
– Enclosure Seal: Silicon FD Compliant
Body:
The body is fabricated using 1.0mm to 1.2mm Grade 304 Stainless Steel. It is designed to be completely smooth and without crevices and without concave angles to facilitate cleaning and avoid deposits. The body is designed to promote self draining for ease of hygienic cleaning.
Cover:
The cover is fabricated using 1.0mm to 1.2mm Grade 304 Stainless Steel and includes a clip-in silicone seal.
Enclosure Seal:
Blue silicone seal, FDA compliant for food production areas.
