316 Stainless Steel Sloping Roof Electrical Enclosure 500H x 400W x 250D IP66
Details
316 Stainless Steel Sloping Roof Electrical Enclosure 500H x 400W x 250D IP66
IP Enclosures SSSR range of grade 316/316L stainless steel sloping roof enclosures are designed for extreme duty applications.
Features & Specifications
Protection: IP66 IK10, NEMA 4x (Independent accredited test laboratory).
Standard: IEC 62208, IEC/EN/AS60529, (UL 508A Optional), RoHS
Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switchgear and controlgear assemblies’.
Material:
Enclosure Body: 1.5mm Grade 316/316L Stainless Steel
Enclosure Door: 1.5mm Grade 316/316L Stainless Steel
Enclosure Seal: Polyurethane
Surface Finish:
0.4 micron Ra surface brushed finish
Enclosure Body:

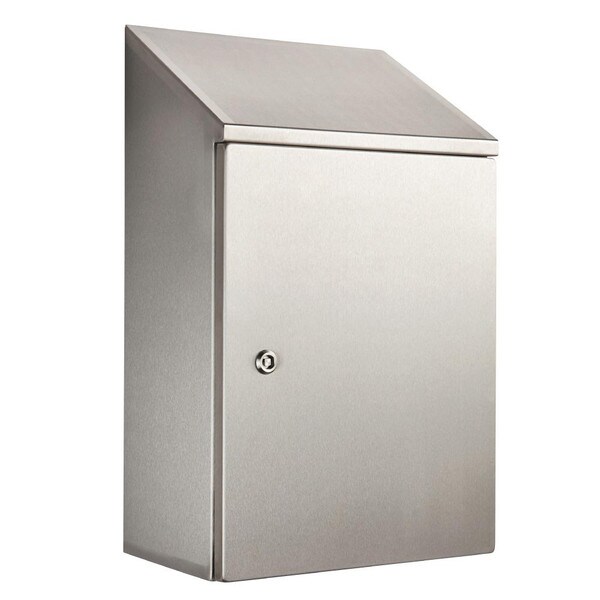

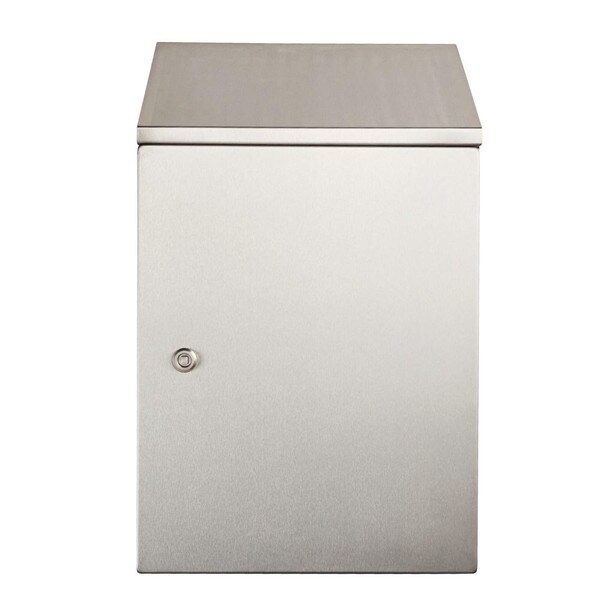

The monoblock body with sloping roof is fabricated using 1.5mm Grade 316/316L Stainless Steel. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounting and accessories. The roof consists of a sloped roof design that protrudes past the seal, flush with the front of the door face.
Enclosure Door:

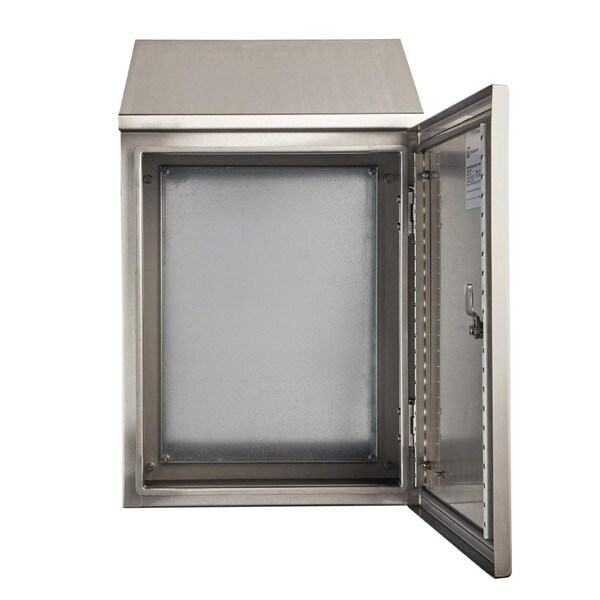

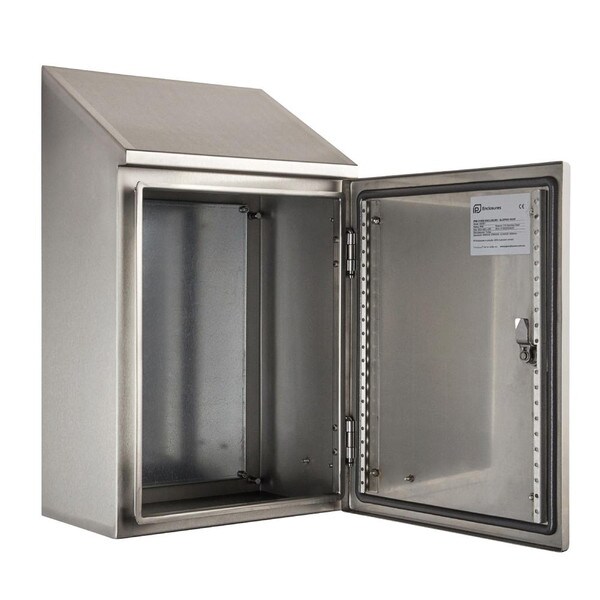

The surface mounted door is fabricated using 1.5mm Grade 316/316L Stainless Steel and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal.
Enclosure Seal:
A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).
Enclosure Lock:
Grade 316 Stainless Steel 8mm square drive quarter turn lock with key.
Device Mounting Plate:
The device mounting plate is fabricated using galvanised steel sheet, pressed to provide additional strength and supplied pre-fitted into enclosure as standard.
Note: Please choose product carefully. Product selection is the responsibility of the “Purchaser”. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to https://www.ipenclosures.com.au/electrical-enclosure-selection/
