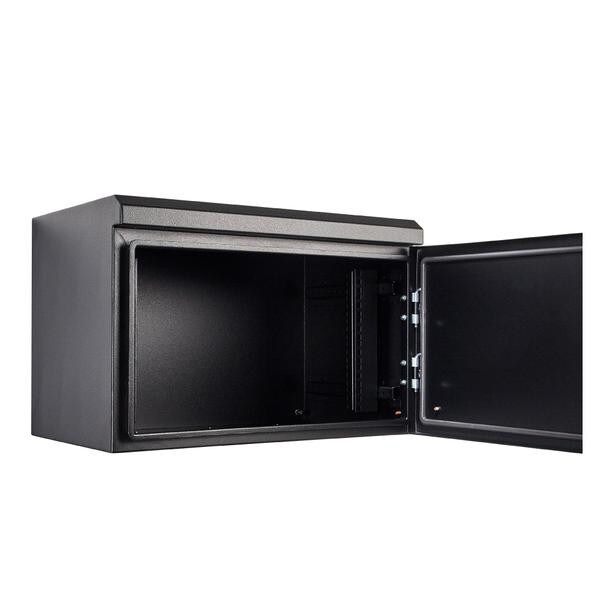

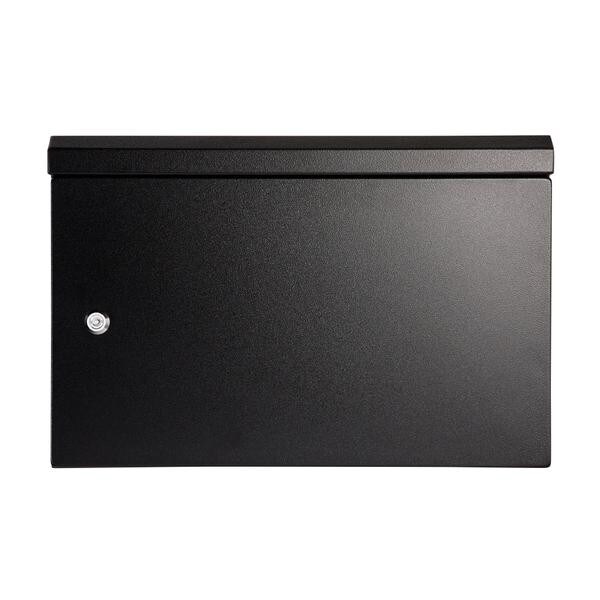

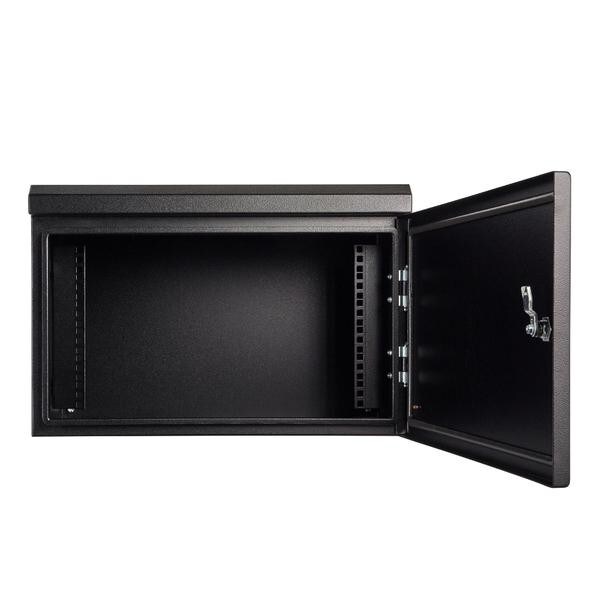

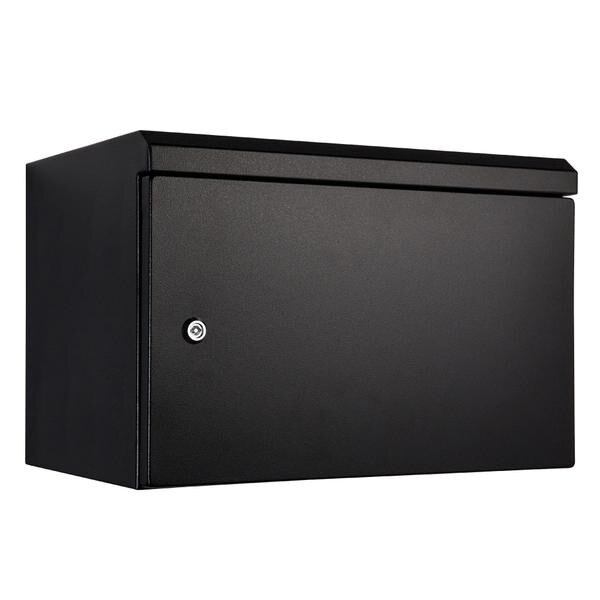

Aluminium Data Rack 6U/RU 600W x 300D Black
Details
Aluminium Data Rack 6U/RU 600W x 300D Black
IP Enclosures IP66 Aluminium 19” data racks are designed for heavy duty outdoor applications to house sensitive data network equipment in harsh environments. They are suitable for internal and external installations.
Features & Specifications:
Protection: IP66
Standard: AS60529, EIA-310-D, RoHS
Material:
Body: Marine Grade Aluminium
Door: Marine Grade Aluminium
19” Data Rack Rails: 1.5mm galvanised steel sheet
Enclosure Seal: Polyurethane
Body:
The monoblock body is fabricated from aluminium sheet. Precision automated manufacturing equipment ensures accuracy and consistent high quality. 19” data rack rails are fitted. 600mm deep racks include front and rear rails.
Door:
The surface mounted door is fabricated from Aluminium. It incorporates concealed removable hinges with captive pins.
19″ Data Rack Rails:
19″ data rack rails are fabricated from 1.5mm galvanised steel sheet.
Seal:
A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).
Lock:
5mm Double Bit Quarter Turn Lock.
Surface Treatment:
UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. Colour RAL9005.
