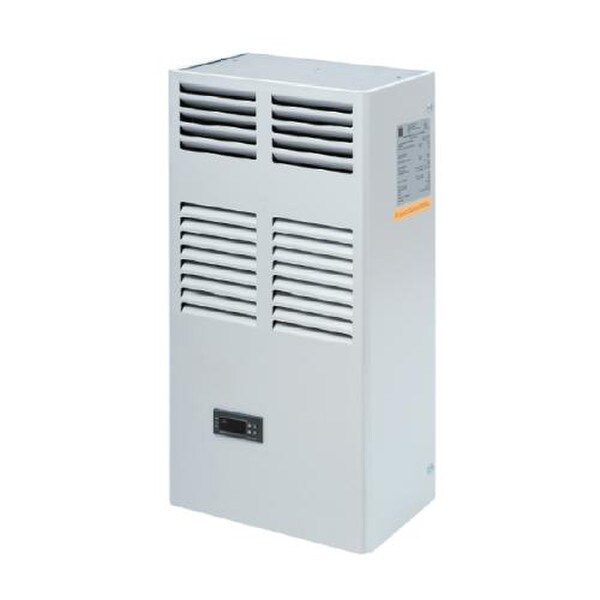

Air Conditioner Indoor Wall Mounted 230V 850W with Alarm, Door Interlock, RS485 Interface & Condensate Drain
Details
Air Conditioner Indoor Wall Mounted 230V 850W with Alarm, Door Interlock, RS485 Interface & Condensate Drain
IP Enclosures Italian vertical-mount compact air conditioners designed for the cooling needs of indoor electrical cabinets. They are optimised for door or side-panel mounting and have been designed for high efficiency and low maintenance.
| Features | Unit | IP-ACIWM085.001 |
|---|---|---|
| Power supply | V/Hz | 230V/1ph/50-60 |
| Dimensions HxWxD | mm | 635x305x210 |
| Cooling capacity EN814 A35A35 | W | 850/900 |
| Cooling capacity EN814 A35A50 | W | 625/650 |
| Air flow rate (free blow) | ||
| inside | m3/h | 600/625 |
| outside | m3/h | 600/625 |
| Max current | A | 2.65/2.75 |
| Delayed fuse | A | 6 |
| Absorbed electric power EN814 A35A35 | W | 450/470 |
| Absorbed electric power EN814 A35A50 | W | 530/560 |
| Refrigerant (type/charge) | kg | R134a/0.3 |
| Maximum Pressure | bar | 25 |
| Operating temperature (ambient) | °C | +20/+55 |
| Operating temperature (enclosure) | °C | +20/+45 |
| Temperature controller (factory set at 35°C) | – | Digital thermostat |
| Compressor type | – | Rotative compressor |
| Noise level | dB(A) | 62 |
| Electrical connection | – | Three-pole connector |
| Protection degree EN60529/1 enclosure inside | – | IP54 |
| Protection degree EN60529/1 ambient inside | – | IP34 |
| Weight (with packaging) | Kg | 23(24) |
| Colour | – | RAL 7035 |
| Conformity/Certifications | – | CE |
