Air Conditioner Indoor 230V 2000 Watt
Details

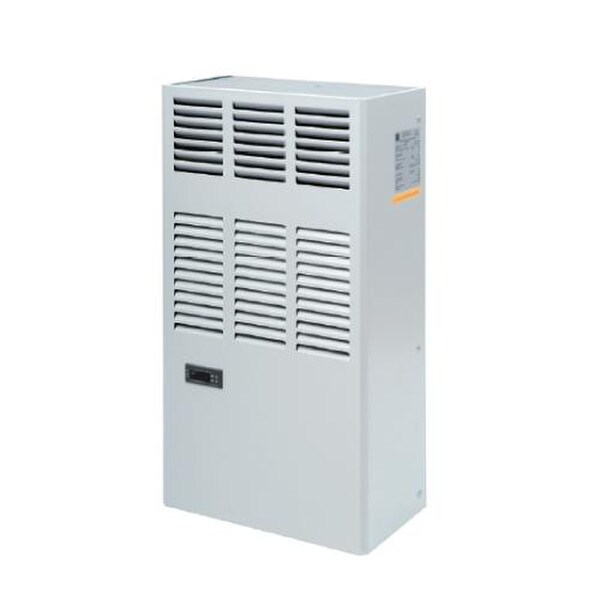

Air Conditioner Indoor 230V 2000 Watt
IP Enclosures Italian vertical-mount compact air conditioners designed for the cooling needs of indoor electrical cabinets. They are optimised for door or side-panel mounting and have been designed for high efficiency and low maintenance.
| Features | Unit | IP-ACIWM200.001 |
|---|---|---|
| Power supply | V/Hz | 230V/1ph/50-60 |
| Dimensions HxWxD | mm | 1000x400x240 |
| Cooling capacity EN814 A35A35 | W | 2000/2100 |
| Cooling capacity EN814 A35A50 | W | 1200/1250 |
| Air flow rate (free blow) | ||
| inside | m3/h | 600/625 |
| outside | m3/h | 880/950 |
| Max current | A | 6.6/6.9 |
| Delayed fuse | A | 10 |
| Absorbed electric power EN814 A35A35 | W | 1060/1100 |
| Absorbed electric power EN814 A35A50 | W | 1240/1300 |
| Refrigerant (type/charge) | kg | R134a/0.6 |
| Maximum Pressure | bar | 27 |
| Operating temperature (ambient) | °C | +20/+50 |
| Operating temperature (enclosure) | °C | +20/+45 |
| Temperature controller (factory set at 35°C) | – | Digital thermostat |
| Compressor type-Alternative compressor | ||
| Noise level | dB(A) | 70 |
| Electrical connection | – | Three-pole connector |
| Protection degree EN60529/1 enclosure inside | – | IP54 |
| Protection degree EN60529/1 ambient inside | – | IP34 |
| Weight (with packaging) | Kg | 49(50) |
| Colour | – | RAL 7035 |
| Conformity/Certifications | – | CE |
